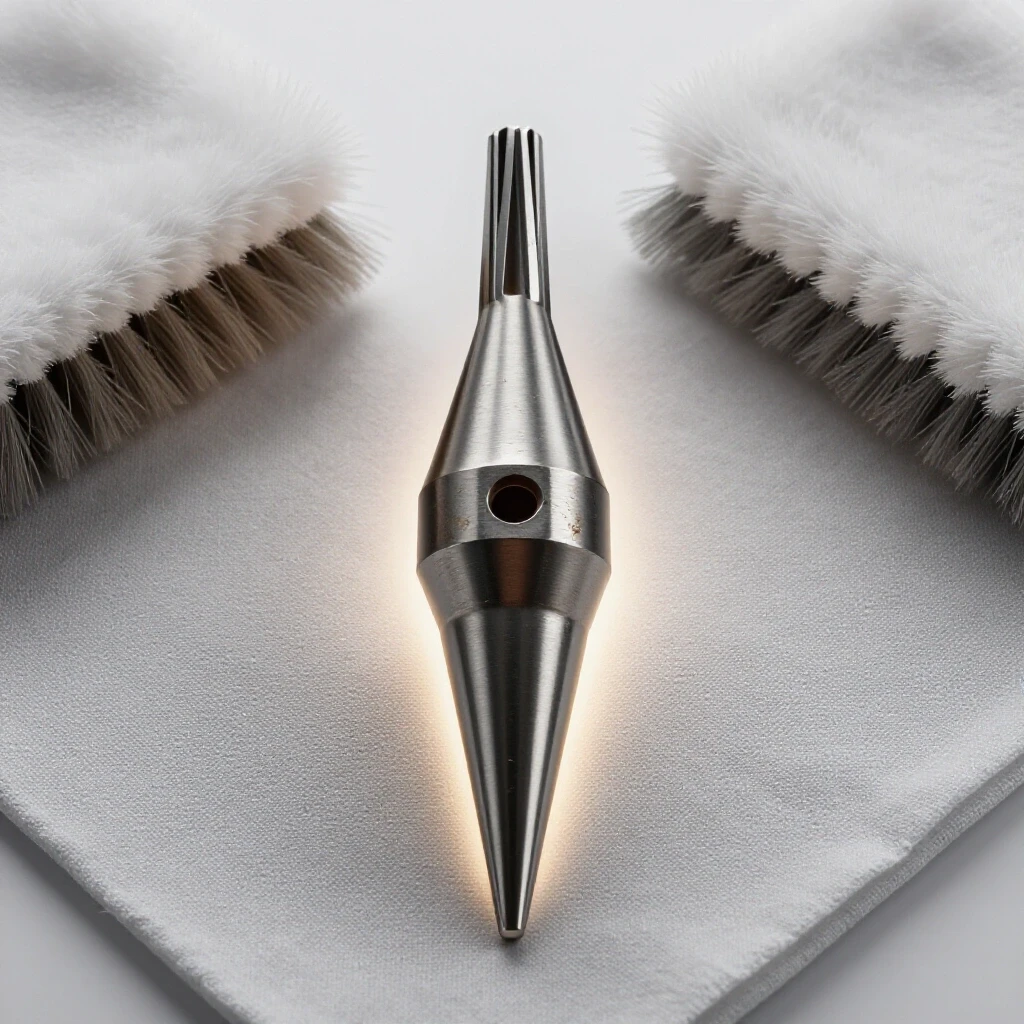

How to Clean and Inspect Oxy-Acetylene Torch Tips (DIY Fix)
In my eighteen years navigating the floors of industrial fabrication mills, I have learned that the most frustrating problems are rarely the largest ones. It is never the massive overhead crane failure that keeps me up at night; it is the subtle, intermittent issues that ruin a day’s productivity. I remember a specific contract involving the structural alignment of a heavy-duty frame where we were seeing consistent porosity in our tack welds. We checked the gas, we checked the material, and we even looked at the ambient humidity. It turned out to be a microscopic bit of carbon buildup in the torch head that was disrupting the gas flow just enough to pull atmospheric air into the puddle.
That experience reinforced my commitment to a systematic diagnostic methodology. When your equipment starts behaving erratically—whether it is a sputtering flame, a popping sound, or a jagged cut—the temptation is to start turning knobs and adjusting pressures. In my shop, we do not guess. We isolate. Most performance issues in gas-fueled cutting and welding can be traced back to the condition of the nozzle. If the orifice is not perfectly round and clear, the gas cannot behave according to the laws of fluid dynamics. This guide is designed to help you master the diagnostic steps required to inspect and restore these critical components.
Identifying the Root Cause of Erratic Flame Geometry
Before picking up a tool, we must understand why a flame becomes unstable. This involves observing the inner cone for asymmetry or “fingers” that indicate internal debris. Recognizing these visual cues allows us to isolate the specific orifice requiring attention without unnecessary disassembly or trial-and-error adjustments.
When I approach a torch that is “acting up,” I start with a visual baseline. A healthy neutral flame should have a crisp, distinct inner cone. If you see a feathered edge or if the flame seems to “lean” to one side, you are looking at a physical obstruction. This is often caused by a tiny piece of slag that has fused to the exit point. In more complex cases, the obstruction is internal, hidden deep within the preheat passages. I have found that by slowly throttling the oxygen, you can often see which specific hole is failing to produce a consistent cone.
Why Carbon Buildup and Slag Intrusion Degrade Performance
Carbon and slag are the primary enemies of a clean gas stream. When molten metal splashes back or soot accumulates from improper gas ratios, it creates physical barriers. These obstructions disrupt the laminar flow, leading to turbulent gas mixing and a loss of cutting precision or heat intensity.
Laminar flow is the smooth, uninterrupted path gas takes through a nozzle. When a piece of carbon enters that path, it creates “eddies” or turbulence. This is very similar to how a rock in a stream creates ripples downstream. In a torch, that turbulence prevents the oxygen and fuel from mixing correctly at the point of ignition. The result is a “lazy” flame that lacks the thermal density required to pierce thick plate. Over time, this buildup can become baked on, making it much harder to remove without the proper mechanical intervention.
Recognizing Symptoms of Internal Contamination
Internal contamination often manifests as a “pop” followed by the flame going out or receding into the head. This is a classic sign that the gas velocity has dropped due to a blockage. If the gas cannot move out of the tip faster than the flame can burn back into it, you get a flashback or a backfire.
I always tell my junior fabricators to listen to the torch. A healthy torch has a steady, consistent hiss. If you hear a fluttering sound or a rhythmic pulsing, you have a flow restriction. Building on this, if you notice that you have to keep increasing your regulator pressure to maintain the same flame size you had an hour ago, you are likely fighting a progressive clog. This is the point where you must stop and perform a thorough inspection.
| Flame Symptom | Likely Physical Root Cause | Diagnostic Action |
|---|---|---|
| Feathered or “fingered” inner cone | Slag or carbon on the orifice rim | Visual inspection of the tip face |
| Frequent popping during use | Internal soot buildup in preheat holes | Mechanical cleaning with wire reamers |
| Flame leans to one side | Asymmetric erosion or “bell-mouthing” | Check for orifice roundness with magnification |
| Excessive soot (black smoke) | Clogged oxygen passage | Clear the center cutting oxygen port |
| Low heat intensity despite high pressure | Severe internal obstruction | Deep cleaning or resurfacing of the face |
Systematic Inspection Techniques for Gas Orifices
A thorough inspection requires more than a quick glance. I use a combination of high-intensity lighting and tactile checks to find microscopic damage. By examining the face of the nozzle for erosion or “bell-mouthing,” we can determine if the component is salvageable or beyond repair.
I keep a 10x jeweler’s loupe at my workbench for this exact reason. What looks like a clean hole to the naked eye can look like a jagged canyon under magnification. When I inspect a tip, I am looking for three things: roundness, flatness of the face, and the absence of “burrs.” If the face of the tip is rounded over from being dragged across a plate, the gas will expand too early, losing its focus. This is a mechanical failure that requires a specific restoration process.
Detecting Bell-Mouthing and Orifice Erosion
Bell-mouthing occurs when the exit point of the orifice becomes flared or rounded over time. This widening causes the gas to expand too early, resulting in a bushy, ineffective flame. Checking for this requires a flat reference surface and a keen eye for geometry.
Erosion is a natural part of the tool’s lifecycle, but it can be accelerated by poor technique. If you consistently hold the torch too close to the work, the reflected heat can soften the copper, making it more susceptible to deformation. To test for this, I use a small machinist’s square. I hold the square against the face of the tip and look for light gaps. If the face is not perfectly perpendicular to the bore, the flame will never be straight. Interestingly, even a deviation of 0.005 inches can be enough to ruin a precision bevel cut.
Evaluating the Integrity of the Seating Surface
The end of the tip that inserts into the torch head is just as important as the end that produces the flame. This seating surface must be pristine to prevent gas leaks. Most tips use a metal-to-metal seal, which means any scratch or dent can allow fuel and oxygen to mix where they shouldn’t.
I always run my fingernail across the seating rings. If I feel a catch, I know I have a potential leak. A leak at the seat can cause “hissing” inside the torch handle, which is a major safety hazard. If the seat is damaged, you might be able to lap it back to flat using a very fine abrasive, but usually, a damaged seat is the one thing that will force me to scrap a tip.
Executing Precise Manual Restoration Procedures
Restoring a nozzle involves removing debris without altering the original bore diameter. I rely on graduated wire cleaners and fine-cut files to resurface the tip face. This process must be incremental, as removing too much metal will permanently ruin the flow characteristics of the gas channels.
The goal here is restoration, not modification. I have seen many well-meaning fabricators ruin a good tip by being too aggressive with a file or a drill bit. You are looking to remove the “crust” of carbon and slag, not the copper itself. I start by cleaning the face, then move to the internal passages. This order is important because cleaning the face often reveals the true extent of the internal clogs.
The Proper Use of Graduated Tip Cleaners
Using a tip cleaner is a delicate operation, not a drilling exercise. You must select the wire size that matches the orifice diameter exactly. Forcing a larger wire or using a sawing motion can gouge the internal walls, leading to permanent turbulence and uneven heating.
- Identify the correct wire size by trying the smaller wires first. The wire should slide in with almost no resistance.
- Once you find the wire that fits the bore, move it straight in and out. Do not twist the wire.
- The wire cleaners have small serrations like a file. These are designed to “scrape” the walls. Use light pressure.
- After several passes, blow through the tip (from the seat end) to clear the dislodged debris.
- Repeat this for every preheat hole and the central cutting port.
Resurfacing the Tip Face with a Fine-Cut File
If the face of the tip is scarred or rounded, it needs to be made flat again. I use a fine-tooth mill file for this. The trick is to hold the file flat and move the tip across the file, rather than moving the file across the tip. This gives you much better control over the angle.
As you file, you only want to remove enough material to get back to “clean” metal. Usually, this is only a few thousandths of an inch. Once the face is flat, you will notice that the edges of the orifices have become slightly “rolled” inward. You must go back in with your wire cleaners to clear these burrs. If you leave the burrs, they will act like tiny ramps that deflect the gas flow, creating a distorted flame.
Troubleshooting Common Flame Defects and Their Fixes
When a flame pops or backfires, it is often a sign of internal contamination. This section breaks down how to correlate specific flame behaviors with physical obstructions. By following a structured fault-tree, you can quickly identify whether the issue is a clogged preheat hole or a damaged cutting oxygen port.
In my years tracking down “ghosts” in fabrication setups, I’ve found that many “equipment failures” are actually maintenance failures. For example, a welder might complain that their machine is losing power, but the reality is that the torch tip is so clogged that the gas pressure is backing up, causing the regulators to hum. By systematically clearing the tip, you eliminate the most common variable in the system.
Resolving Persistent Popping and Backfiring Issues
Popping usually happens when the gas velocity drops below the burning rate, often due to a partial blockage. This creates a vacuum that pulls the flame inside the tip. Clearing the internal passages and ensuring a flush seat against the torch head usually resolves this frustrating phenomenon.
If the popping persists after a thorough cleaning, check the tightness of the tip nut. A loose nut allows air to be sucked into the gas stream through the seat. This creates an “over-lean” mixture that is highly prone to popping. I also check for any cracks in the tip body itself. While rare, a thermal stress crack can develop in the copper, allowing gases to mix prematurely. If you find a crack, the tip is a total loss and must be discarded.
Correcting “Lazy” or Non-Responsive Cutting Streams
A “lazy” cutting stream is when the high-pressure oxygen doesn’t seem to have the “punch” it used to. When you hit the lever, the oxygen should come out as a tight, needle-like column. If it spreads out like a showerhead, your central orifice is compromised.
This is often caused by a tiny “whisker” of slag stuck just inside the rim of the center hole. I use a slightly smaller wire cleaner to gently probe the depth of the center port. Sometimes, carbon can build up an inch deep inside that passage. If the wire doesn’t clear it, I have occasionally used a very small amount of solvent on the wire to help break down the carbon binders, though you must ensure the tip is completely dry and blown out with compressed air before re-using it to avoid a fire hazard.
| Inspection Step | Metric/Tolerance | Tool Required |
|---|---|---|
| Orifice Roundness | Within 0.002″ of true circle | 10x Magnifier |
| Face Flatness | No light visible under square | Machinist’s Square / Fine File |
| Seat Integrity | No visible scratches or pits | Tactile (Fingernail) Test |
| Preheat Consistency | All cones equal in length (+/- 1/16″) | Visual observation |
| Cutting Stream Focus | Straight column for 3-4 inches | Visual (Oxygen lever depressed) |
Real-World Case Study: The Mystery of the Jagged Bevel
A few years back, I was working on a project involving 2-inch thick plate for a bridge assembly. We were using a track burner to get perfectly straight bevels. Halfway through the shift, the cuts started looking like they had been chewed by a serrated knife. The operator had already swapped the tip once, but the problem persisted.
I stepped in and performed a systematic teardown. I noticed that the new tip also had a slight “finger” on one of the preheat flames. Upon closer inspection with the loupe, I found that the torch head itself had a tiny piece of brass shaving lodged right where the tip seats. Every time a tip was installed, that shaving was preventing a perfect seal, causing a microscopic turbulence in the oxygen stream. We cleared the head, cleaned the tip face, and the cuts returned to mirror-smooth. The lesson: even a “new” part can be compromised by a dirty environment.
Diagnostic Math: Calculating Flow Obstruction
While we don’t often do math at the bench, it helps to understand the physics. The flow of gas is proportional to the square of the radius of the orifice. This means if a clog reduces the diameter of a hole by only 10%, you aren’t losing 10% of your flow—you are losing nearly 20%. This exponential loss is why even a tiny bit of soot makes such a massive difference in how the torch performs.
When you are reaming out a hole, remember that if you accidentally enlarge it by just a few thousandths of an inch, you are significantly changing the gas-to-oxygen ratio for that specific hole. This is why I stress using the correct size cleaner. You want to maintain the manufacturer’s original flow calculations to ensure the torch operates at its peak efficiency.
Developing a Maintenance Checklist for Long-Term Reliability
Consistency in the shop comes from routine, not just emergency repairs. Establishing a weekly inspection schedule ensures that small buildups don’t turn into major workflow disruptions. This proactive approach saves time and maintains the high standards required for precision metalworking and structural alignment.
I keep a small logbook near my gas station. Every Friday, I spend ten minutes checking the tips we used that week. It is much easier to remove a week’s worth of carbon than a year’s worth. This habit has saved us countless hours of downtime and has significantly extended the life of our consumables.
Essential Tools for Your Maintenance Kit
Having the right tools on hand is half the battle. A dedicated kit should include a set of standard cleaners, a fine-tooth flat file, and a magnifying glass. These simple items allow for quick, onsite diagnostics and repairs without needing to stop production for extended periods.
- Standard tip cleaner set (wire sizes #75 to #49).
- 6-inch fine-cut mill file.
- 10x magnification loupe or strong reading glasses.
- Small brass wire brush for external cleaning.
- Clean, lint-free cloth for wiping seats.
- Small machinist’s square for checking face perpendicularity.
Actionable Benchmarks for Tip Performance
How do you know when a tip is “good enough”? I use a few simple benchmarks. First, when the oxygen lever is pressed, the cutting stream should be visible as a clear, blue “needle” for at least three inches before it begins to dissipate. Second, all preheat flames should be identical in length. If one is shorter, it is still partially blocked. Finally, the torch should be able to hold a very small, low-pressure flame without popping. If it can do that, you know your internal passages are clear and your velocities are correct.
Conclusion: Mastery Through Methodical Care
Maintaining your gas equipment is not just about fixing a tool; it is about controlling your process. In the world of high-stakes fabrication, where a single bad cut can waste thousands of dollars in material, the condition of your torch tip is a direct reflection of your professional standards. By moving away from “guesswork” and toward a systematic inspection and restoration protocol, you ensure that your equipment works for you, rather than against you.
I have found that the most skilled fabricators are the ones who respect their tools the most. They understand that a clean orifice is the difference between a weld that passes X-ray and one that ends up in the scrap bin. Take the time to look closely, clean carefully, and test thoroughly. Your productivity—and your sanity—will thank you for it.
FAQ: Troubleshooting and Restoring Gas Torch Nozzles
Why does my torch keep popping even after I cleaned it?
Popping is often caused by a loose tip nut or a damaged seating surface that allows air to leak into the gas stream. If the tip is clean, check the seat for scratches and ensure the nut is tightened to the manufacturer’s specification.
Can I use a regular drill bit to clean the holes?
No. Drill bits are too aggressive and can easily enlarge the orifice or change its internal geometry. Always use graduated wire cleaners specifically designed for this task to avoid ruining the flow characteristics.
How do I know if a tip is too damaged to save?
If the face is so badly eroded that you cannot file it flat without shortening the tip significantly, or if the seating surface has deep gouges that cause leaks, it is time to replace it. Safety should always come before trying to save a few dollars on a consumable.
What is the best way to remove stubborn slag from the tip?
Start with a brass wire brush to remove loose debris. For fused slag, use a fine-cut file to gently level the face of the tip. Never use a hammer or a screwdriver to chip slag off, as this will deform the copper.
Why is the flame “fingering” or splitting?
This is a classic sign of a partial obstruction at the very edge of the orifice. A tiny burr or a speck of carbon is splitting the gas stream. Recleaning the hole with the proper wire size and lightly resurfacing the face usually fixes this.
How often should I perform this maintenance?
In a high-production environment, I recommend a quick visual check daily and a thorough cleaning weekly. If you are doing a lot of “piercing” (which causes more blowback), you may need to clean the tip multiple times a day.
Does the type of fuel gas change how I clean the tip?
The mechanical cleaning process is similar, but different gases (like propane vs. acetylene) use different tip designs. Propane tips often have a recessed center, which requires a different approach to resurfacing the face. Always ensure you are using the correct cleaning tool for the specific tip geometry.
Can I use liquid cleaners or solvents?
Generally, mechanical cleaning is sufficient. If you use a solvent to break up heavy carbon, ensure it is non-flammable and that the tip is completely dry and purged with air before use. Never use oil-based cleaners, as they can react violently with high-pressure oxygen.
Why does my cutting oxygen stream look like a “fan” instead of a “needle”?
This indicates that the central cutting orifice is either bell-mouthing or has internal turbulence. Check for roundness and ensure the internal passage is clear of carbon all the way through.
What should I do if the preheat holes are different sizes?
If the holes have become enlarged through improper cleaning or excessive wear, the torch will be difficult to tune. You will likely have one part of the flame that is always “oxidizing” or “carburizing.” In this case, the tip should be replaced to maintain weld quality.
Is it normal for the tip to change color?
Yes, copper will naturally darken and develop a patina due to heat. However, if the tip turns a bright blue or purple, it has been severely overheated, which can soften the metal and lead to rapid deformation.
How do I check for a leak at the torch head?
After installing a cleaned tip, you can use a dedicated, oil-free leak detection solution (or simple soapy water) around the tip nut. If you see bubbles, you have a seating issue that needs to be addressed before lighting the torch.
